Infrared Cctv Board IP Camera Lens 2.8mm F1:2.0 1/2.5'' -20℃- 80℃ Operating Temerature

Brand Name : YA

Model Number : YMF2820C-5MP

Certification : ROHS

Place of Origin : JIANG XI , CHINA

MOQ : negotiable

Price : negotiable

Payment Terms : Prepaid 30 % Cash on delivery

Supply Ability : 2 million pcs / month

Delivery Time : The product is sold for 3 to 7 days, the new product 25 days

Packaging Details : The inside lamas envelope, the outer packing carton

Item : Board Lens for IP Camera

Focal-Length (mm) : 2.8

Mount : CS

Weight (g) : 20.5

M.O.D : 0.2mm

Aperture : F1:2.0

H FOV : 1/2.5"

Contact Now

Hotsell 2.8mm F1:2.0 1/2.5'' CS Mount 5 MP Board Lens For IP Camera

Model:YMF2820C-5MP

Profile of Board Lens for IP Camera:

High-Definition 5MP
H FOV:1/2.5"
Fixed Aperture
Infrared/ IR

Specification of Board Lens for IP Camera:

Specification
(Aperture D/f')	F1:2.0
<Focal-Length (mm)>	2.8
(Mount)	CS
(Field)	156°

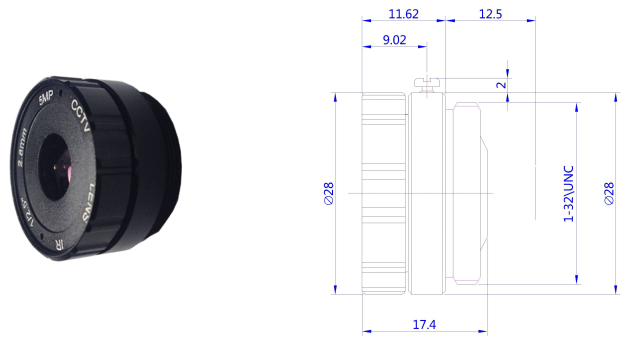

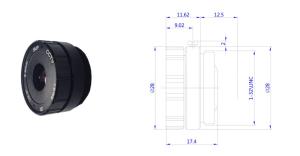

< Dimension (mm)>	Φ28×17.4
<Weight (g)>	20.5
<M.O.D (m)>	0.2
(Operation)	( Zoom):	(Fix)
	(Focus):	( Manual)
	( Iris ):	( Fix )
(Operating Temerature)	-20℃~+80℃
<Bake Focal-Length (mm)>	6.9
(Lens Construction)	3Group 4Pics
(Nail)	Black half round head cross screw or white rubbed nails
